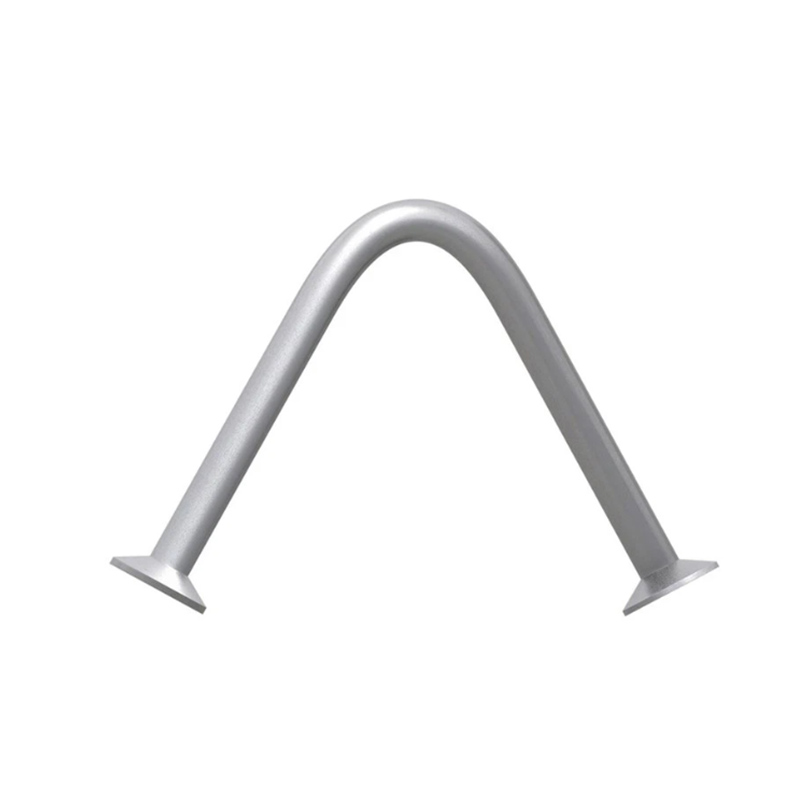

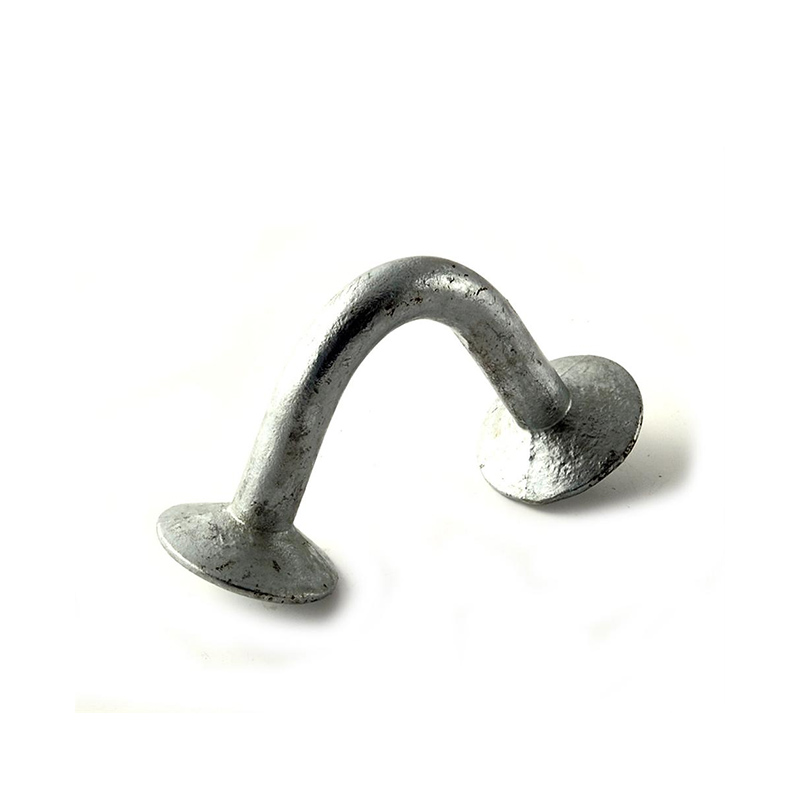

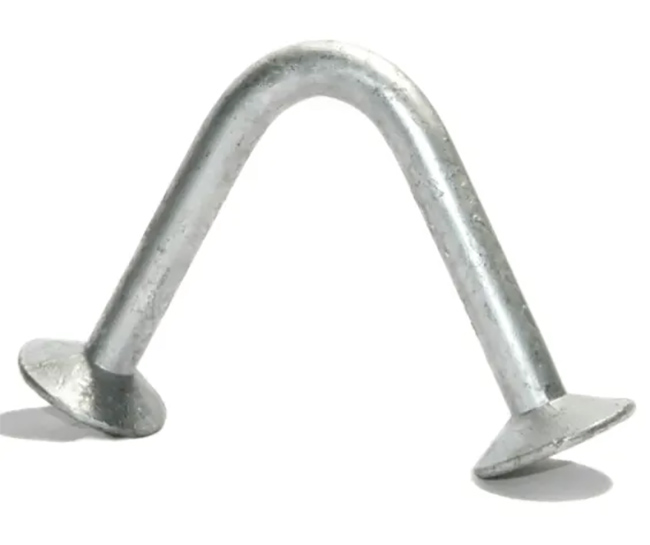

Utility Anchor Lifting Anchors
Utility Anchor Lifting Anchors
Utility Anchor Lifting Anchors
Utility Anchor Lifting Anchors
Utility Anchor Lifting Anchors

Utility Anchor Lifting Anchors

Utility anchors are designed for reinforced or unreinforced concrete units, especially for decking, pipes, and culverts; or any application where a construction site can benefit from an approved and tested precast concrete lifting anchor, a multipurpose anchor for lifting and tilting precast concrete. No particular lifting shackles are required as they allow the direct connection of the crane hook to the prefabricated unit. These anchors can be used in axial and shear applications without additional reinforcement.

  • Item No :

    Utility Anchor Lifting Anchors
  • Order(MOQ) :

    500
  • Product Origin :

    china
  • Lead Time :

    7-10days

Utility Anchor Lifting Anchors

With the rapid development of building industrialization, the safety of lifting and transportation of precast concrete components has become the core of construction efficiency. Utility Anchor Lifting Anchors have become the preferred solution in the global engineering field due to their excellent load-bearing performance, flexible application scenarios and compliance with international safety standards. Whether you are a precast component manufacturer, construction party or design unit, this product can provide reliable protection for the project and significantly reduce risks and costs.

Utility Anchor Lifting Anchors

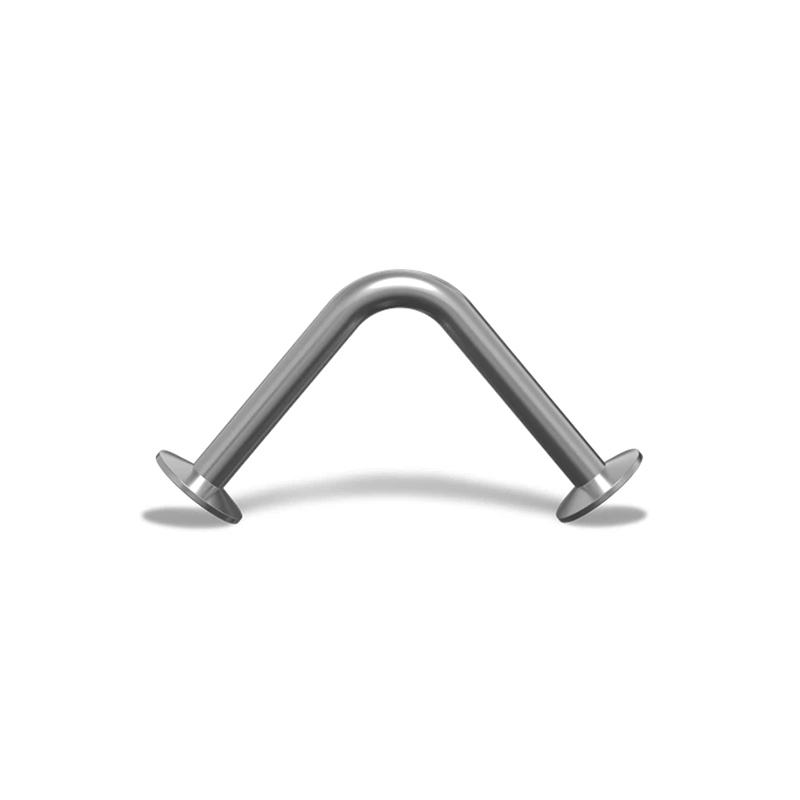

Utility Lift Anchor Description

The Utility Anchor is a versatile and economical insert for lifting and holding precast concrete elements. The ease of installation and high safe working load are some of the many benefits of this insert.
Utility Lifting anchors are designed and engineered to safely and efficiently lift and position concrete components during production, storage, transport, and installation. All anchors are manufactured from high-quality, high-strength steel, and are designed to meet OSHA 4 to 1 Safety Factor requirements. It is important to note that in some cases the anchor does not reach full capacity in lower-strength concretes. Concrete strengths of 0 to 3,500 psi are recommended to develop indicated anchor-safe working loads. The safe working loads displayed in the tables on the catalog pages are applicable for any directional loading.

Main functions

Lifting and handling: used for demoulding, handling, loading, transportation of precast concrete components, as well as unloading and installation at the construction site.

Multi-purpose: In addition to lifting, it can also be used as a pulling tool, such as adjusting and positioning components at the construction site.



Feature of Utility Lift Anchor:

• High strength - up to 24,000 Ibs.SWL

• No special lifting hardware required

• Uses a standard hook or clevis

• Easy to install and use

• Utilizes reusable 90° and 45° polyurethane recess plugs

• Eliminates "'through holes" in the precast element

• An economical and versatile system- applicable to any precast concrete element



Specification of Utility Lift Anchor:

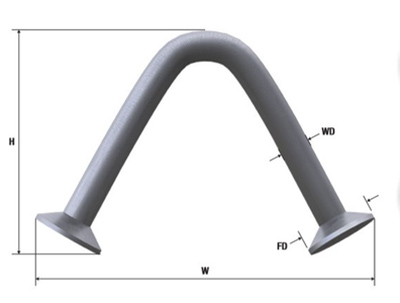

Specification of Utility Lift Anchor
Number W H FD Weight(lbs) WD Anchor identification Typical slab thickness
LSCULA44G 5-1/4'' 3-1/8'' 15/16'' 0.45 0.444 4月4日 4''
LSCULA54G 6'' 3-3/4'' 15/16'' 0.53 0.444 5月4日 5''
LSCULA64G 7-1/4'' 4-3/4'' 15/16'' 0.59 0.444 6月4日 6''
LSCULA56G 6-1/4'' 3-3/4'' 1-5/8'' 1.11 0.671 5月6日 5''
LSCULA66G 7-1/2'' 4-3/4'' 1-5/8'' 1.34 0.671 6月6日 6''
LSCULA86G 9-3/4'' 6-3/4'' 1-5/8'' 1.81 0.671 8月3日 8''



The design of Utility Anchor fully considers the full life cycle requirements of precast concrete:

Production stage: fast demoulding and in-plant transportation to shorten the production cycle.

Transportation stage: firmly fix the components to reduce the risk of displacement during transportation.

On-site installation: as a towing point, it supports precise lifting and temporary fixation.

Special environment: suitable for working conditions with concrete strength of 2,100~3,500 psi, covering most engineering needs.

Utility Anchor Lifting AnchorsUtility Anchor Lifting Anchors



Installation precautions

Installation angle: The anchor should be installed perpendicular to the concrete surface.

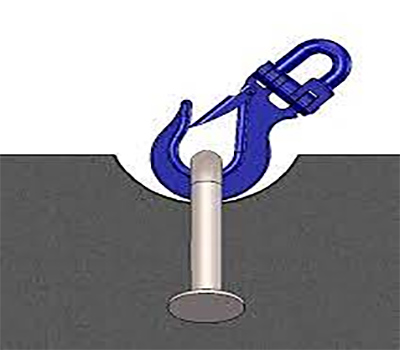

Lifting direction: The opening of the hook or shackle should be opposite to the force direction to avoid contact with the concrete.

Minimum edge distance: Avoid installation at thin edges to prevent concrete spalling.



For use with

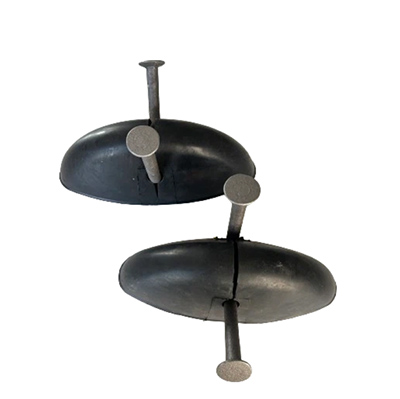

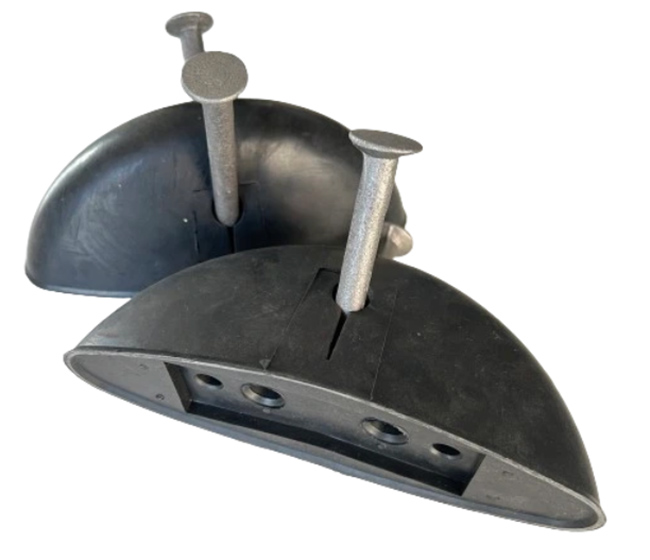

Utility Anchor Precast Concrete Lifting Anchors for use with rubber Recess Former

Utility Anchor Precast Concrete Lifting Anchors

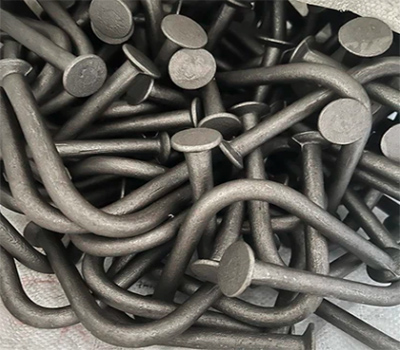

Factory of Utility Anchors

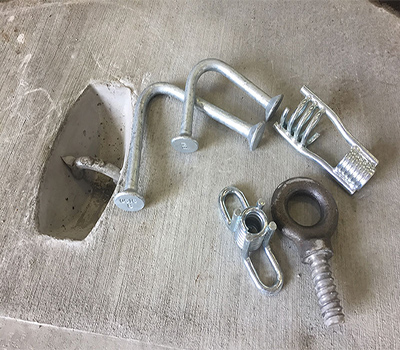

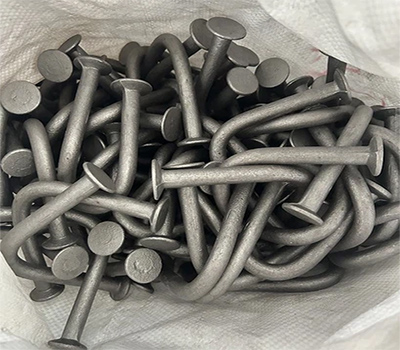

Utility Lift Anchor Spot Display

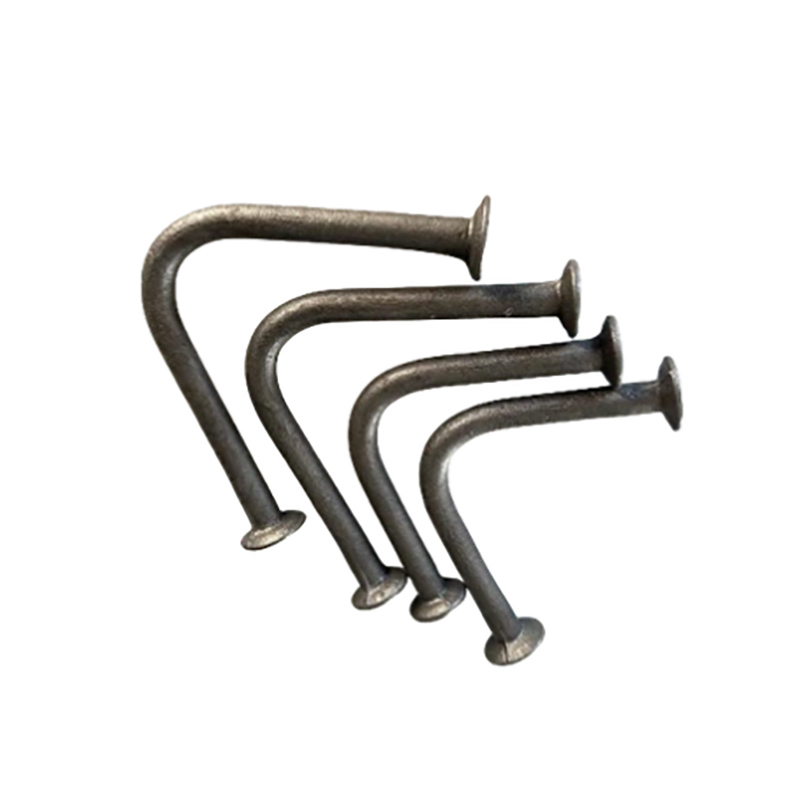

Utility Lift AnchorUtility Lift Anchor



Why Choose Us?

1.Asian reliable supplier from China, we have served numerous clients all over the world. We have been working with our customers for fifteen years. We have a comprehensive set of services, sales, and after-sales service.

2.We have all the popular design; Small order is accepted and competitive price.

3.Our team will inspect and test goods very carefully when Know the material tread and know the market

4.All inquiries responded within 12 hours Close to the port, providing great advantages to trade

5.What are your payment terms? For other payment terms, we can negotiate about it depend on specific order details.

6.After the product enters the freight forwarding warehouse:

①Our salesman confirms that the bill of lading is correct and informs the customer of the sailing date and arrival date.

②Provide customs clearance information such as invoices, packing data, BL, Form-e and CO, pictures of products entering the warehouse, etc.

③Or provides a one-stop DDP service for customs clearance.
