Fixing System For Precast Concrete Unit

The short-wave tail anchor is a compact and high-strength lifting solution for precast concrete components. Its wave-shaped reinforcing bar tail ensures uniform load distribution, prevents concrete cracking, and allows for secure connection to threaded sleeves or lifting inserts, enabling safe and efficient operation. The anchor's safe working load capacity ranges from 0.5 tons to 8.0 tons, and thread size, height, and diameter can be customized to meet the requirements of various precast concrete projects, ensuring safe lifting and secure installation.

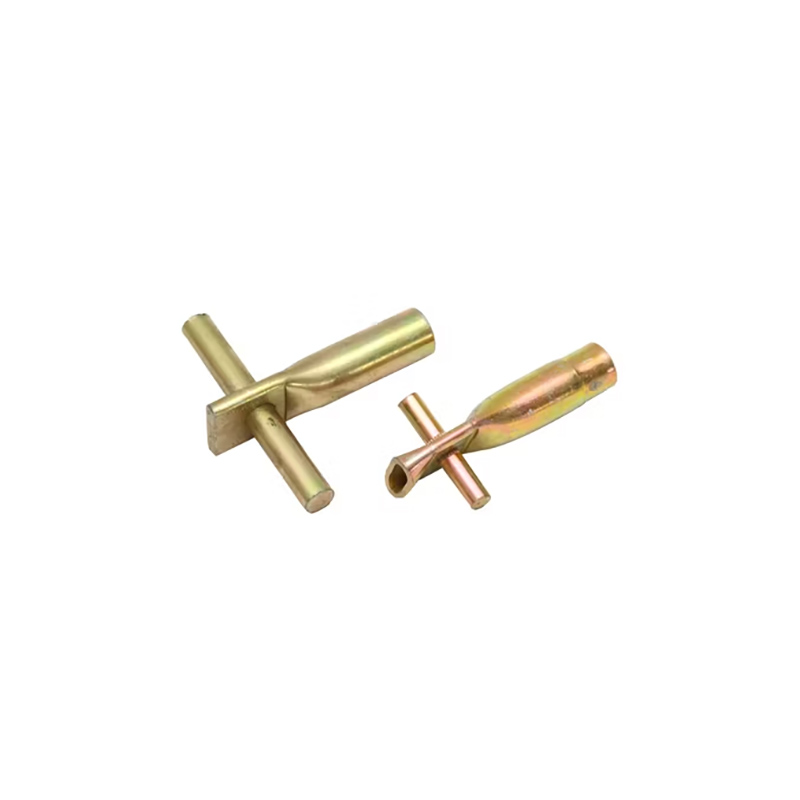

Fixing Socket With Cross Pin is a connection device used for the installation of precast concrete components. It fixes the precast components in the concrete structure through cross pins, without the need for additional reinforcement, and can quickly and reliably connect the precast components.

Wavy Tail Anchor (Long Type) is a mechanical anchor designed for precast concrete components. Its tail adopts a unique wavy structure, which can greatly improve the bonding strength and pull-out resistance with concrete. This product is widely used in prefabricated buildings, bridges, tunnels and other projects to ensure a stable connection between components and enhance the safety and durability of the overall structure. The socket of the Wavy Tail is available in high grade zinc plated carbon steel and is swaged to a waved reinforcment bar. They are available with Rd12 to Rd52 threads that have load ratings from 500kg to 12,500kg. Stainless Steel sockets and re-bar tails are available to special order.
