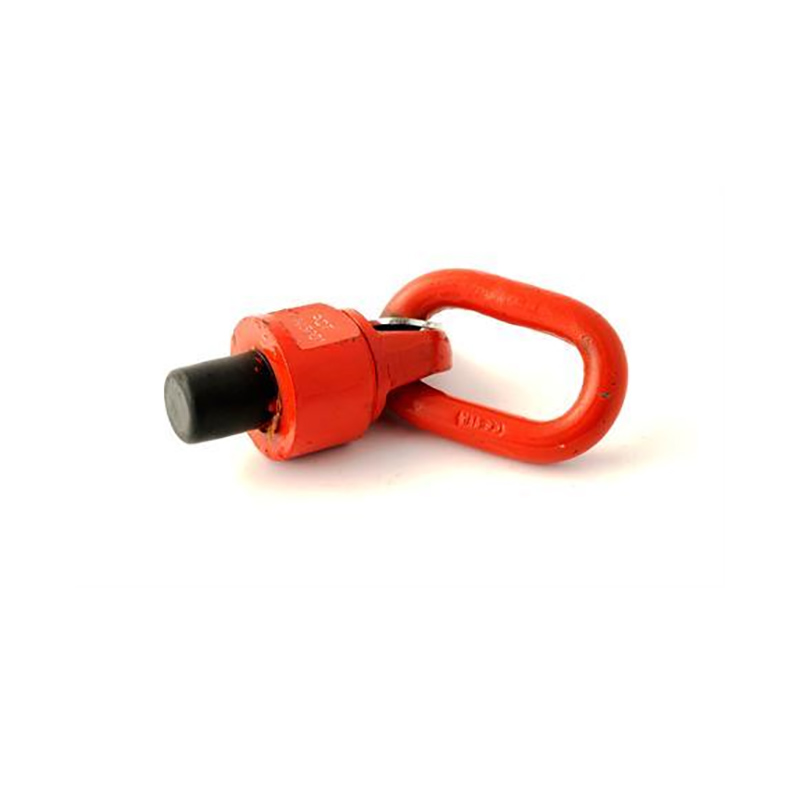

With the Swivel Lifting Eye, precast concrete units can be safely lifted utilising lifting points in their sides. Units can also be safely tilted from the horizontal to the vertical plane and vice versa. The pressure plate with its large cross sectional area generates an even distribution of pressure over a large surface area of concrete. The Swivel Lifting Eye’s special swivelling component automatically adapts to the direction of the inclined lifting forces. The safe working load of the Swivel Lifting Eye is valid for lifts along the axis of the thread through to lifts perpendicular to its axis.

  • Item No :

    Swivel Lifting Eyes
  • Order(MOQ) :

    500
  • Product Origin :

    china
  • Lead Time :

    7-10days

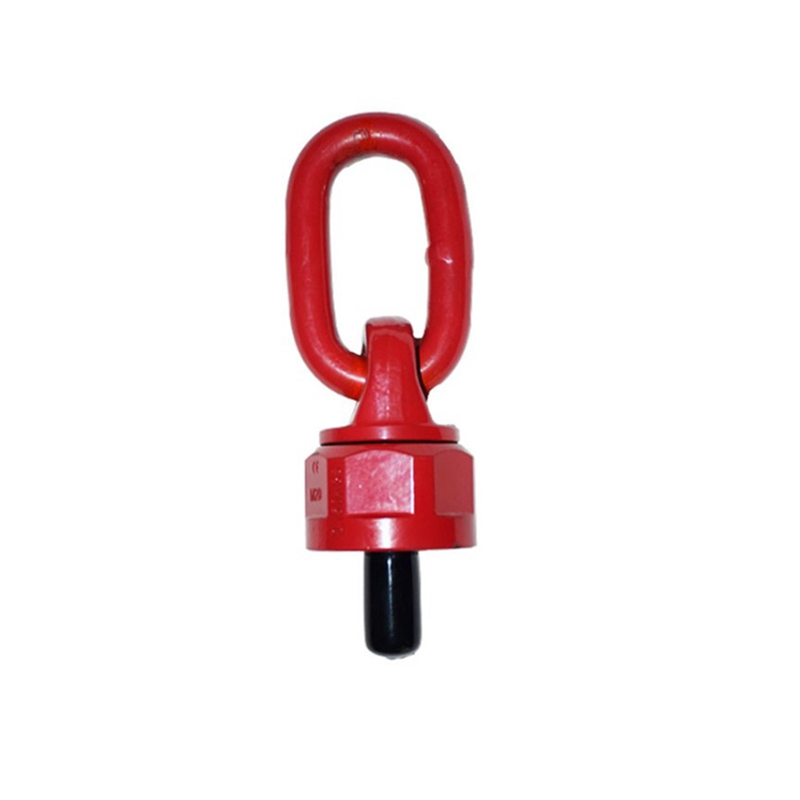

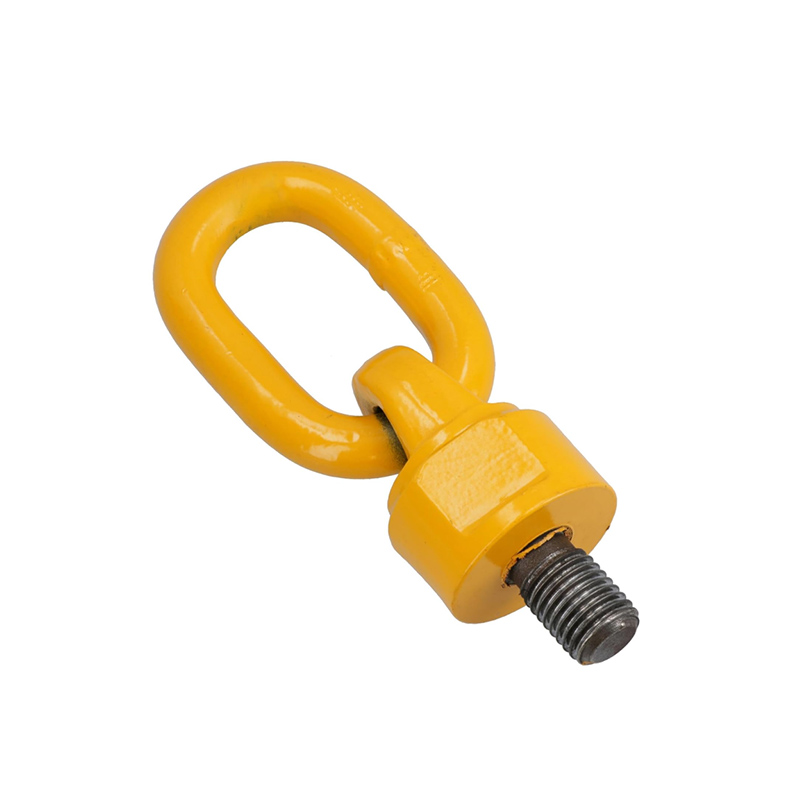

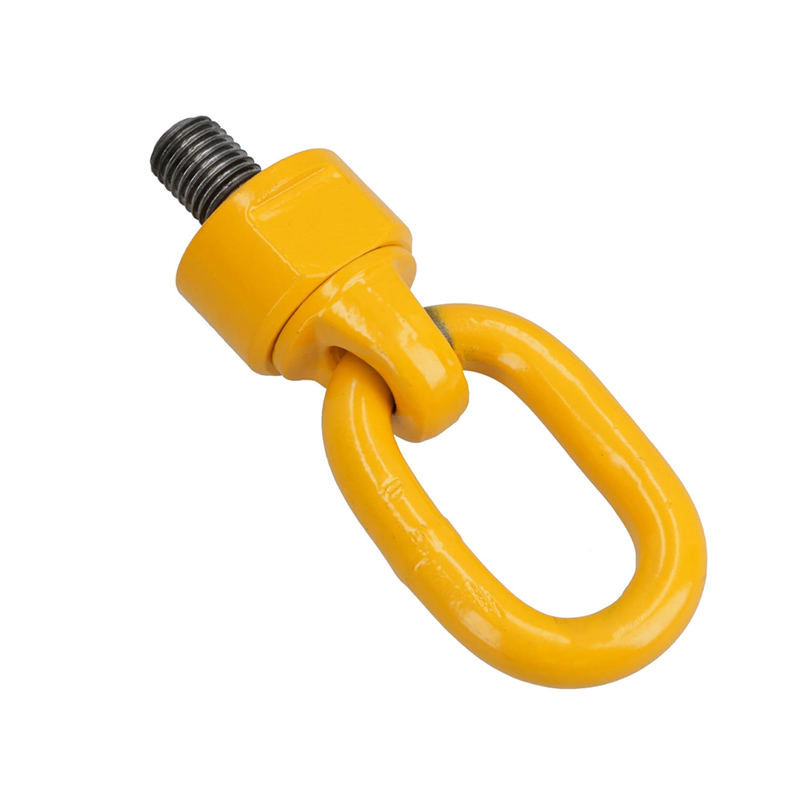

Swivel Lifting Eyes

Swivel Lifting Eyes are a type of device used in lifting and hoisting operations. They are usually made of metal and have a rotatable or flippable ring or eye structure used to connect lifting equipment (such as hooks, hoists, etc.) to the object being lifted (such as mechanical equipment, components, etc.). The design of the swivel lifting eyes enables it to provide more flexible angle and direction adjustments during lifting operations, helping to ensure a safe and efficient lifting process. These devices are commonly used in lifting, handling and transportation operations in the industrial field.



Introduction of Swivel Lifting Eyes

Introduction of Swivel Lifting Eyes:

Professional swivel lifting point for commercial or own personal use
Rotating eyebolts
Welded oval link for multi-directional lifting applications
M12 x 18mm Grade 80 Swivel Lifting Point
Maximum lifting capacity – 0.5 ton (500kg) – this will depend on the angle of lift
Offers flexibility for diverse applications
Oval link so perfect for attachment to hooks and other lifting equipment for a secure load
Used to create an anchor point for lifting operations
Allows the eye to rotate without unscrewing
The built in ball bearing rotates 360 degree
Safer lifting technique
Flexible and suitable for various applications
Also known as a hoisting eye or load ring lifting point
Pivots through just over 180 degrees
Manufactured from grade 80 steel for maximum strength and durability
Powder coated for rust and corrosion resistance
Used where loads need to be lifted, rotated, transported and positioned
Essential part of cranes, hoists and other lifting devices



Structure and Function

Rotation function: The key feature of Swivel Lifting Eyes is that it can rotate and swing, usually 360 degrees. This design allows the lifting eye to automatically adjust its position according to the direction of the load during the lifting process, reducing the distortion and stress concentration of the sling.

Connection method: It is usually connected to the object being lifted by threading, suitable for equipment or structures with threaded holes. Its thread forms are various, including metric and imperial threads, and the size ranges from M5 to M100.

Load capacity: The load capacity of Swivel Lifting Eyes varies depending on the model and size, ranging from a few hundred kilograms to tens of tons or even hundreds of tons.

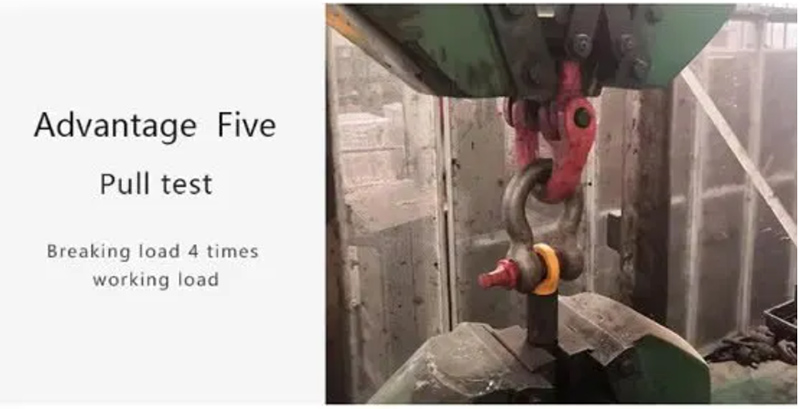

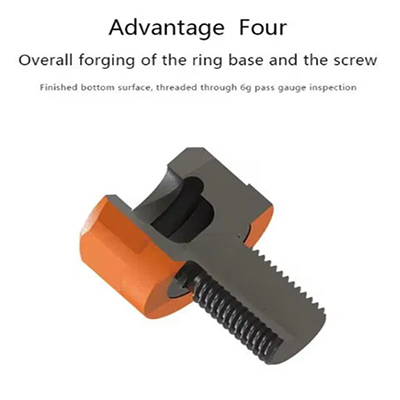

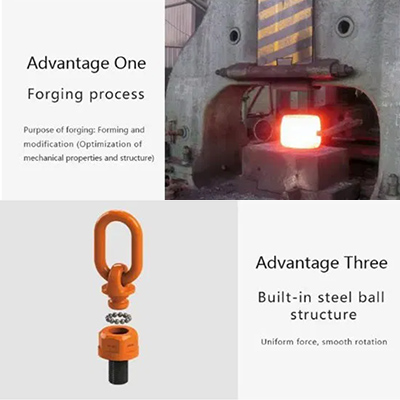

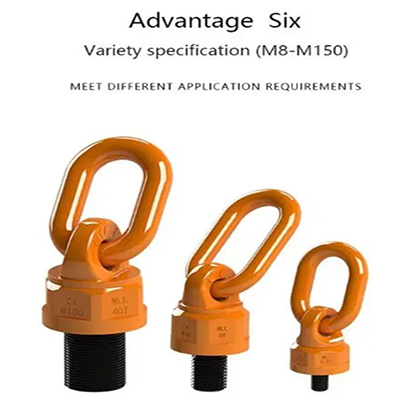

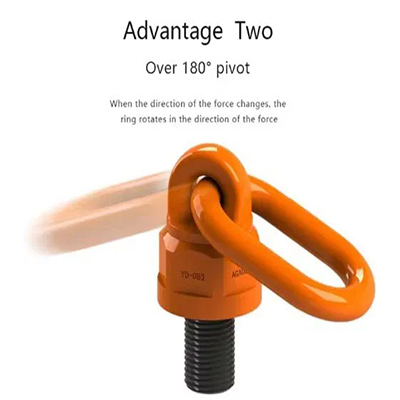

Advantages of Swivel Lifting Eyes:

Advantages of Swivel Lifting EyesAdvantages of Swivel Lifting Eyes

Advantages of Swivel Lifting Eyes

Advantages of Swivel Lifting EyesAdvantages of Swivel Lifting Eyes



Specifications of Swivel Lifting Eyes:



Product Code Thread Dia. (M) Length (mm) SWL (kg)
SLE12 12 118 500
SLE16 16 130 1200
SLE20 20 146 2000
SLE24 24 163 2500
SLE30 30 187 4000
SLE36 36 205 6300
SLE42 42 226 8000
SLE52 52 274 12500

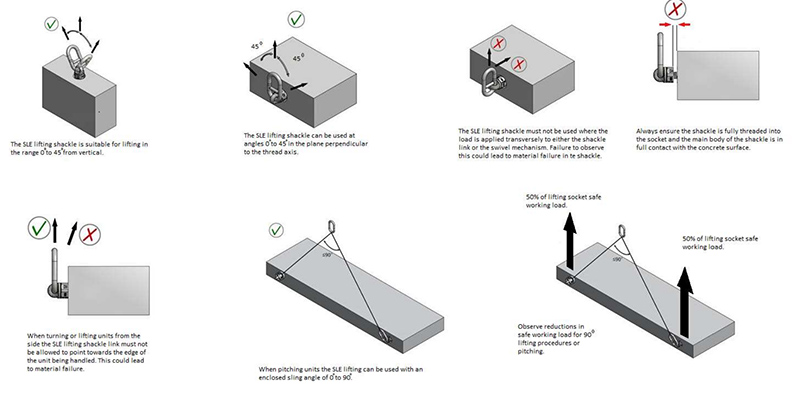

Safety guidance for swivel lifting eyes:

Safety guidance for swivel lifting eyes





Associated Products







----------------FAQ--------------

 Q1: Does your workshop have products in stock?

A1: Yes, we have. But we only have standard-sized products; if you need customized products, it will take some time to manufacture them.

Q2: Whether you can offer customized service?

A2:  Yes, the working condition of every customer is different. All of our products can be customized depending on customers' requirements. Please give us the information as straightforward as you can, so we can provide our best design to suit your demands.

Q3: How to confirm the working class of the crane?

A3: Please offer us the working environment, working duration, and frequency of the crane, and our engineer shall calculate it for you.

Q4: What kind of package for the hoist?

A4: Hoists and Electricals packed in wooden fumigation box. The main beams are covered by woven plastic cloth.
