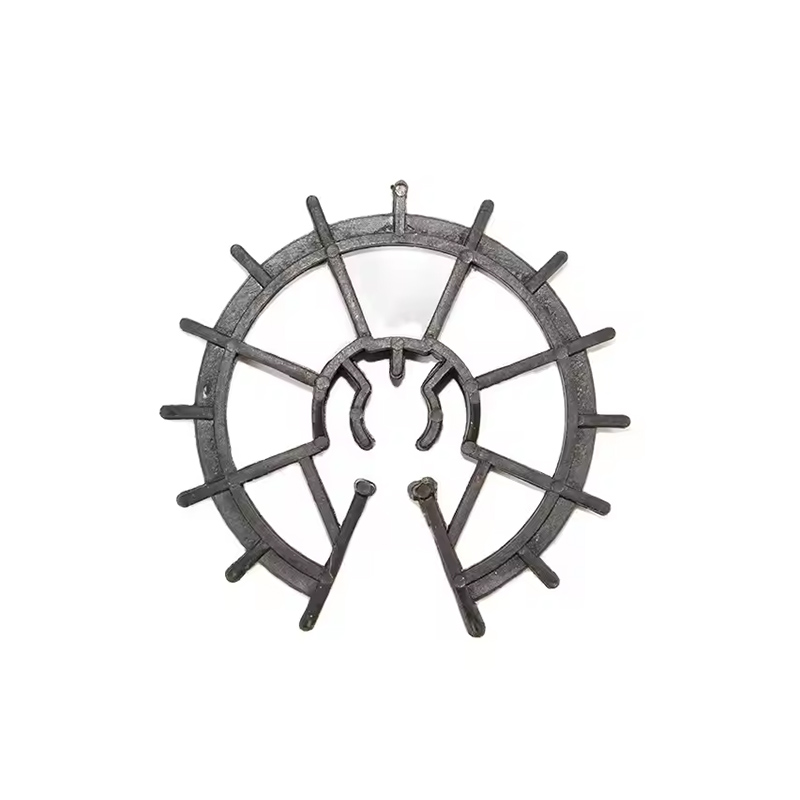

Rebar Spacer Wheels For Precast Concrete

Common types

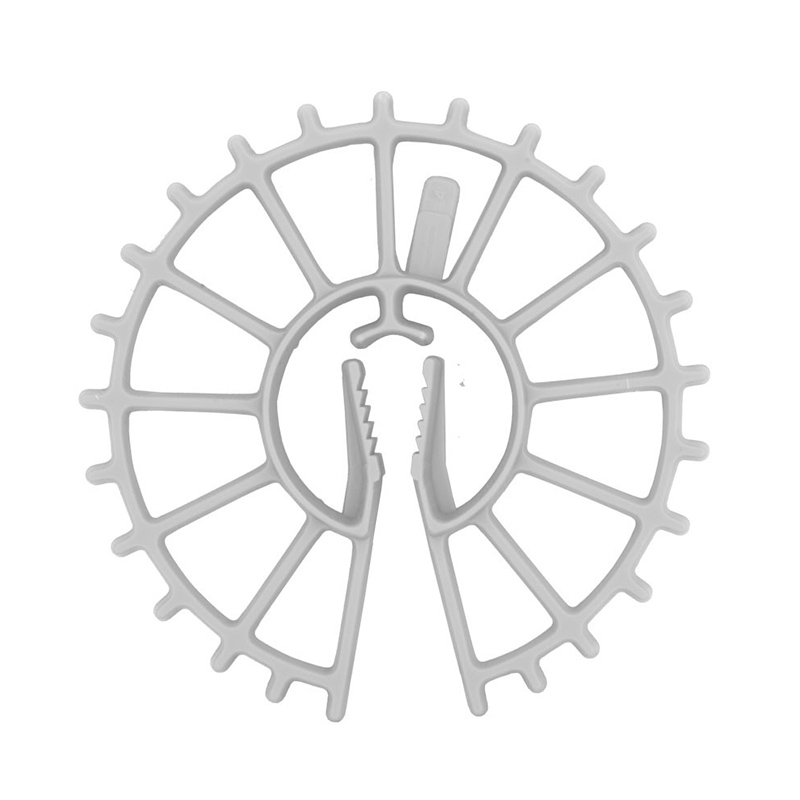

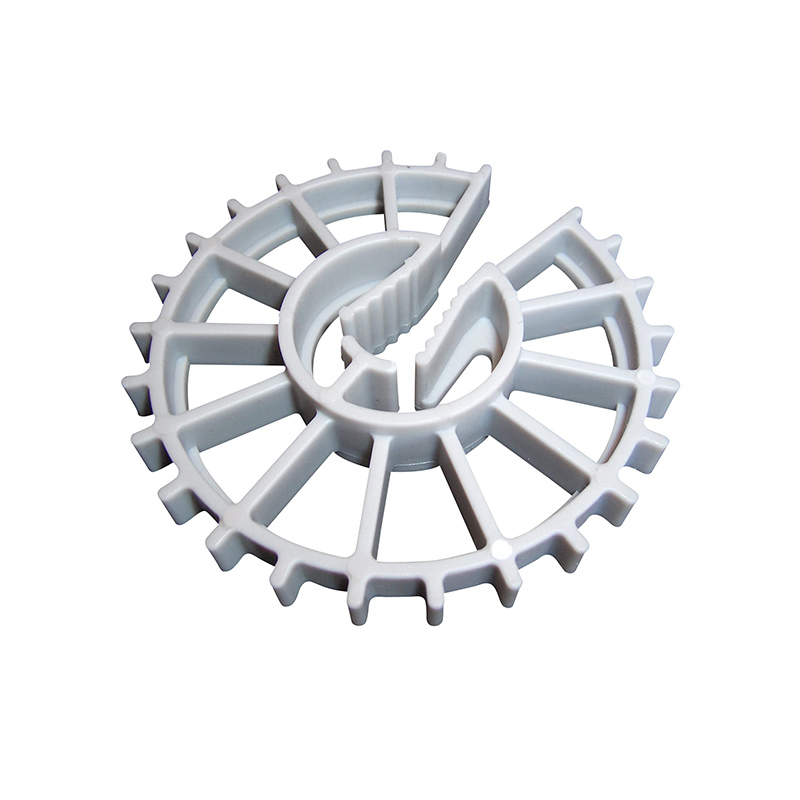

Ordinary spacing wheel: suitable for positioning the spacing of steel bars in general precast concrete components.

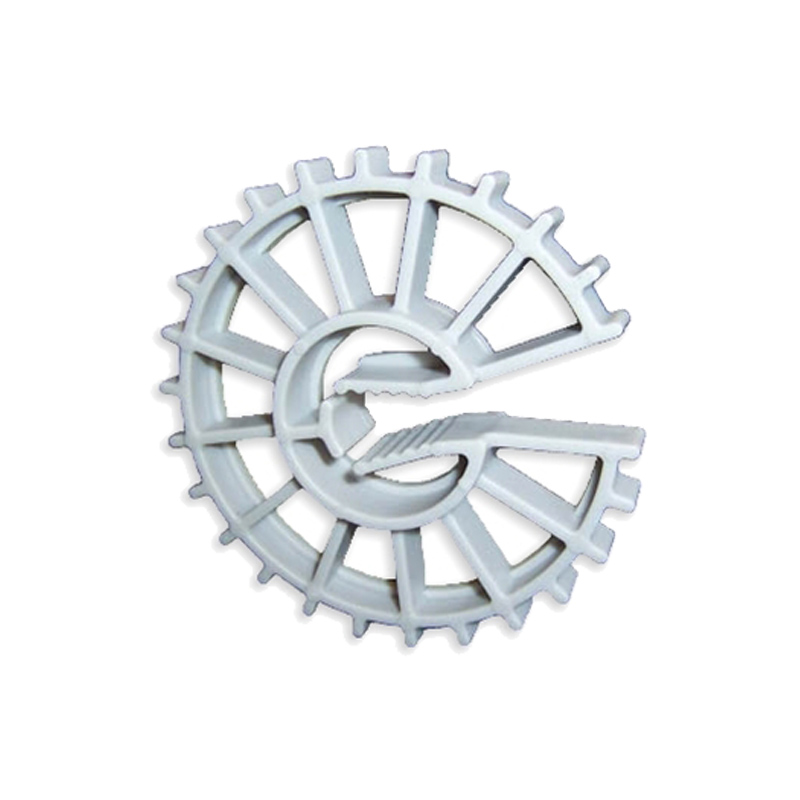

Locked spacing wheel: with locking function, it can better fix the steel bars and prevent them from loosening during concrete pouring.

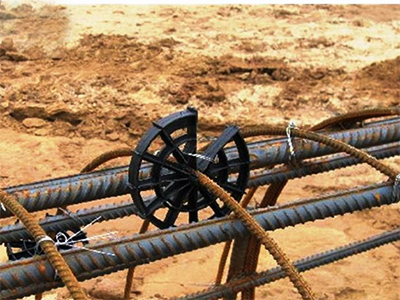

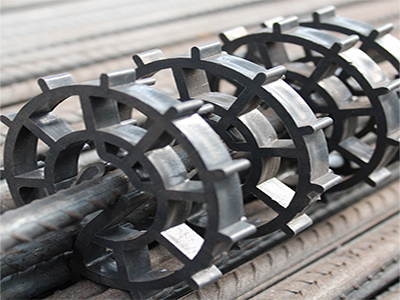

Bored pile spacing wheel: specially used for positioning the steel cage in bored pile construction

Specification

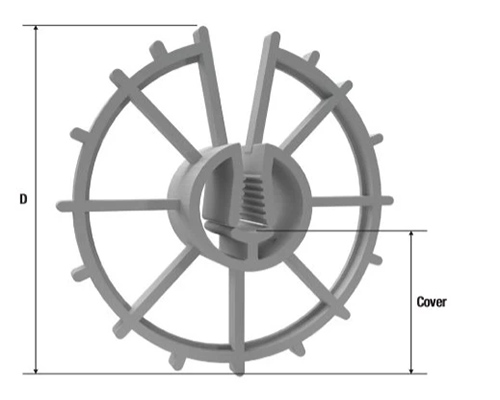

No.	Rebar size	Cover/Size	D	Qty/ctn
LSC058	#3-#4 Rebar	5/8''	1-7/8''	1800
LSC1	#3-#5 Rebar	1''	2-5/8''	900
LSC112	#3-#6 Rebar	1-1/2''	3-5/8''	700
LSC2	#3-#6 Rebar	2''	4-5/8''	450
LSC2	#3-#6 Rebar	3''	5-5/8''	270
LSC312	#3-#6 Rebar	3-1/2''	6-5/8''	200

Uses

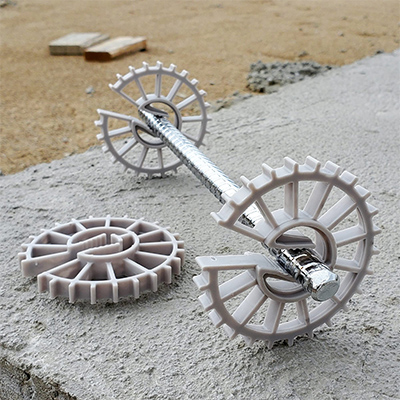

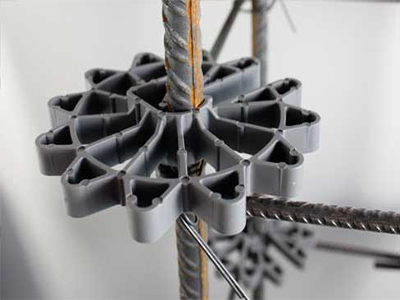

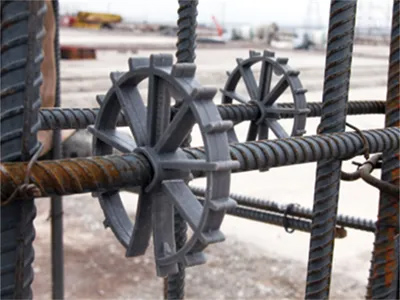

Maintaining the spacing between steel bars: In precast concrete components, the steel bars need to maintain a certain spacing to ensure uniform stress and structural stability of the concrete. Rebar Spacer Wheels can fix the steel bars in the correct position to prevent them from shifting during the concrete pouring process.

Providing a protective layer for concrete: Ensure that there is enough protective layer thickness between the steel bars and the concrete surface to prevent the steel bars from being exposed to the air, thereby avoiding steel bar corrosion.

Applicable to a variety of precast components: It can be used to position the steel bars of precast wall panels, columns, beams, floor slabs and other components.

How to effectively extend the service life of Rebar Spacer Wheels?

Cleaning and maintenance - Clean Rebar Spacer Wheels regularly according to the cleanliness of the use environment. Wipe the surface with a dry, oil-free cloth and avoid using highly corrosive chemicals. For metal spacer wheels, special rust removers or anti-corrosion coatings can be used for treatment.

Check fasteners - Regularly check whether the connection parts of the spacer wheel are loose, including bolts, nuts, etc. Use appropriate tools (such as wrenches) for tightening operations to avoid damage caused by excessive force.

Anti-corrosion treatment - Select a suitable anti-corrosion cycle according to the corrosiveness of the use environment. Before applying the anti-corrosion coating, make sure that the surface of the spacer wheel is clean and free of oil and follow the instructions provided by the manufacturer.

Lubrication maintenance - If the spacer wheel contains sliding parts or rotating parts, these parts need to be lubricated regularly to reduce wear. It is generally recommended to perform comprehensive lubrication once a quarter.

Troubleshooting - Common problems that may occur during use include loosening, deformation or corrosion of the spacer wheel.
