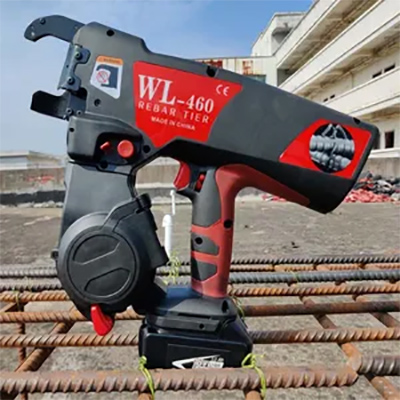

The automatic steel bar tying machine is an intelligent device that can quickly complete steel bar tying through motor drive or semi-automatic operation. Its core principle is to use a mechanical arm or rotating claw to accurately grab the binding wire and complete the knot around the intersection of the steel bars, replacing the traditional manual operation. This type of tool is suitable for tying steel bars with a diameter of 8-34mm and can be widely used in residential buildings, bridges, tunnels and other scenes.
Item No :
Automatic Rebar Tying ToolOrder(MOQ) :
1Product Origin :
chinaLead Time :
7-10daysAutomatic Rebar Tying Tool
In the construction industry, steel bar tying is a basic but arduous process. Traditional manual tying is not only time-consuming and labor-intensive, but also has pain points such as low efficiency and unstable quality. With the rise of intelligent construction technology, the Automatic Rebar Tying Tool came into being and became a core tool to promote construction efficiency and safety.

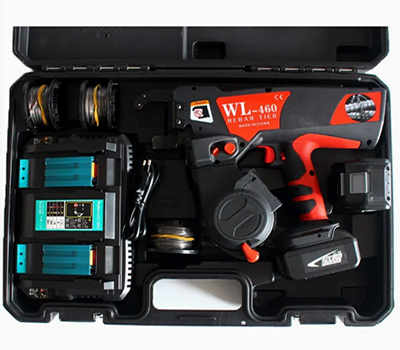

The fully automatic Rebar tying machine produced by our company can be widely used in roads, construction, and other fields. With the update and iteration of the machine, it can be better applied to different scenes. Its work efficiency is 3-4 times that of manual labor, which can save a lot of manpower, improve work efficiency, and greatly reduce the labor intensity of workers. Each machine is equipped with a body, battery, charger and special cable reel.

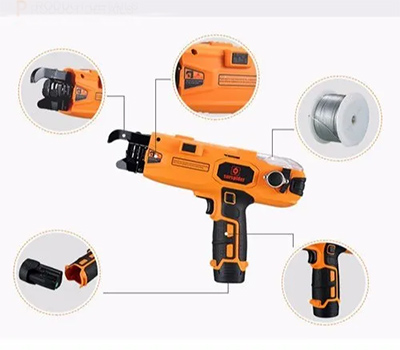

The components are mainly divided into:

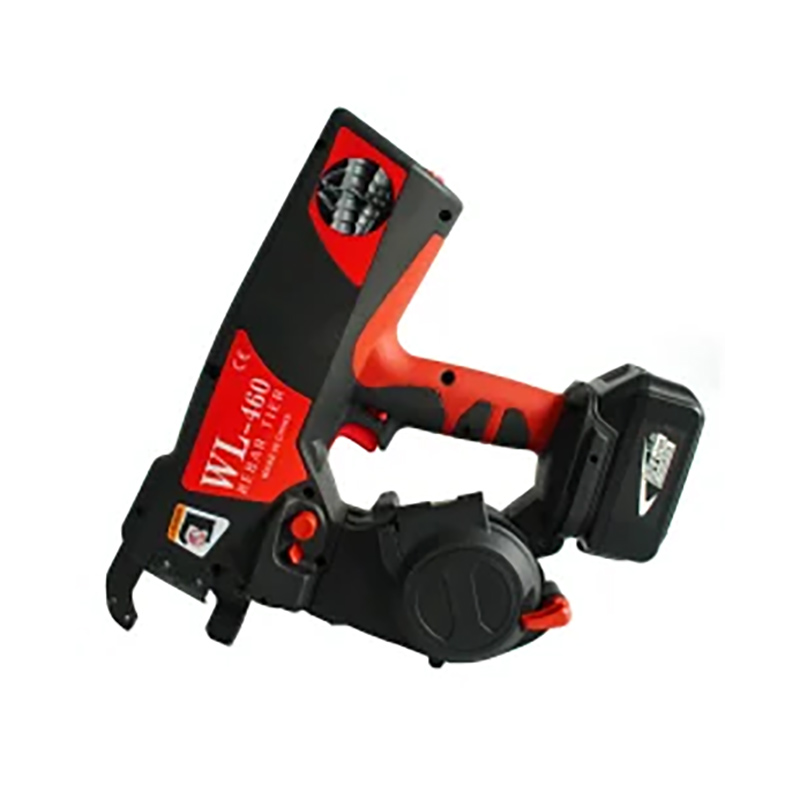

Main structure: The appearance is similar to a large pistol, with a wire winding mechanism at the muzzle and a rechargeable battery at the handle.

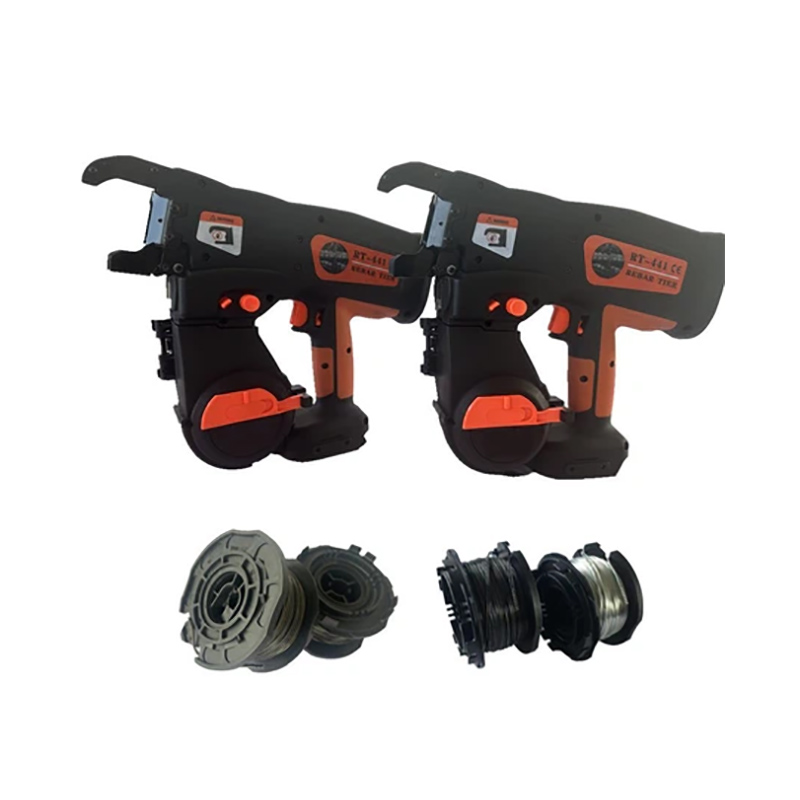

Wire supply: A coil is installed at the tail to provide wire.
Control system: A built-in microcontroller can automatically control the tying process.
Working principle

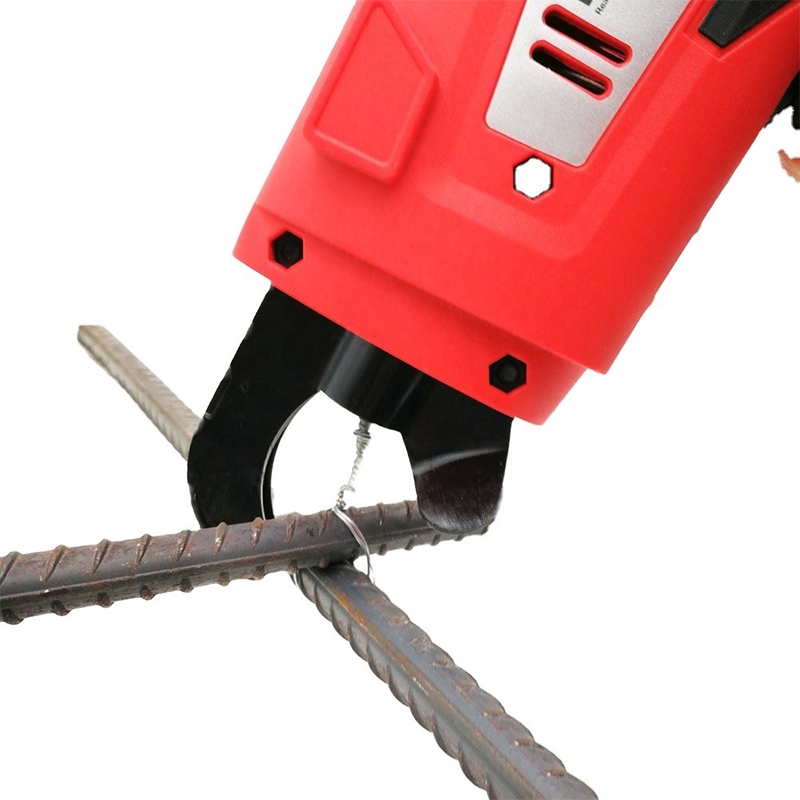

Automatic binding: The tool has a built-in microcontroller that can automatically complete the binding process of steel bars. It uses a built-in mechanical device to wrap the wire around the intersection of the steel bars and automatically complete operations such as winding and knotting.
Easy to operate: The user only needs to align the binding head of the tool with the intersection of the steel bars to be tied, press the trigger, and the tool will automatically complete the binding.
Rebar Tying Machines Technical Parameters
| Working Voltage: | 18.5V |
| Maximum Tying Diameter: | 4-45 mm |
| Tying Speed Of One Knot: | 0.6 seconds |
| Wire Length For One Knot: | 10-19 cm |
| Number Of Knots That Can Be Tied On One Charge: | 3700 knots |
| Wire Diameter: | 1.0 *2mm |
| Wire Material: | Vacuum annealed wire, galvanized wire (Q195 / ZS08) |
| Length Of Each Coil Of Wire: | 33.6m |
| Number Of Knots That Can Be Tied On One Coil Of Wire: | 330 knots |
| Weight Of One Coil Of Wire: | 450 gs |
| Battery Capacity: | 5000mAH |
| Charging Time: | 50-80 minutes |
| Rechargeable Times: | 500 times |
| Charger Input Voltage: | AC100-240V (50AH) |
| Suitable for | Double wire, TW1061T, TW1061T-EG, TW1061T-PC |
Features
Efficient and fast: Compared with traditional manual tying, the tying speed of automatic rebar tying tools is greatly improved, which can usually increase work efficiency by 3 to 5 times.
Manpower saving: Due to its high degree of automation, the intensity and time of manual operation are greatly reduced, reducing labor costs.
Safe and reliable: The design of the tool is ergonomic, simple to operate, and relatively safe during use.
Wide range of application: Applicable to a variety of construction scenarios, including large-scale projects such as construction projects, bridges, tunnels, and subways.
Automatic rebar tying tools have many significant advantages in large-scale projects, mainly as follows:
1. Significantly improve construction efficiency - the tying speed of automatic rebar tying tools is 3 to 5 times that of manual work. For example, some equipment only takes 0.6 seconds to 1 second to complete a tying point, and can complete 50 to 60 tying points per minute. In large-scale projects, such as high-rise buildings, bridges or tunnels, this efficient tying speed can significantly shorten the construction period and speed up the project progress.
2. Reduce labor intensity and labor costs - Traditional manual tying requires workers to bend over for a long time, which is labor-intensive and easy to fatigue. The automatic rebar tying tool adopts one-handed operation, which is simple and labor-saving, greatly reducing the physical burden of workers. In addition, the efficiency of one device can replace 4 to 6 workers, thereby significantly reducing manpower requirements and reducing labor costs.
3. Improve tying quality and safety - Automatic rebar tying tools can ensure that the strength of each tying point is uniform, the quality is stable, and the tying success rate can reach more than 99%. This consistency is crucial to the structural integrity of large-scale projects. In addition, the automated operation of the tool reduces human interference and reduces tying errors caused by fatigue or negligence.
- In terms of safety, the automatic rebar tying tool is easy to operate, and one-handed operation improves the safety factor of workers in complex construction environments and reduces the risk of occupational diseases caused by long-term bending or holding heavy objects.
4. Adapt to complex construction environments- The automatic rebar tying tool is suitable for a variety of complex scenarios, including large infrastructure projects such as high-rise buildings, bridges, tunnels, and subways.
This Rebar tying machine can use different Rebar tie wires (single wires) Other materials can be used, for example, material: Q195, length: 100 meters, wire diameter: 0.8mm
