Precast concrete bread magnets are special bread-shaped template magnets specifically designed for use with rail molds or plywood templates. With the addition of a multi-functional adapter, the bread magnets can be effectively secured, ensuring a tight fit with the side mold. Equipped with a special release tool, the magnets can be easily placed in the correct position. Its working principle is based on a unique pressure point effect, where pressure points on the inside of the template grip the beveled surface of the tapered magnet. This gives all U-shaped templates shock and vibration protection. Various chamfering treatments are available. Draft angles can be adjusted as needed. Hopper recesses and slots can be set for all common robotic systems.
Item No :
Corner Slip-on U-shuttering Magnet Formwork MagnetOrder(MOQ) :
1Product Origin :
chinaShipping Port :
7-10daysCorner Slip-on U-shuttering Magnet Formwork Magnet
In the production of precast concrete components, low corner forming accuracy, slow demolding efficiency, and high formwork wear have long been three major challenges plaguing the industry. Traditional wooden formwork with screw fixing methods are not only labor-intensive and slow-paced, but also cause corner damage and dimensional deviations due to repeated disassembly and assembly, directly affecting the component's appearance and assembly accuracy.
Now, a brand-new solution is quietly changing the industry landscape—Corner Slip-on U-shuttering Magnet Formwork Magnet .

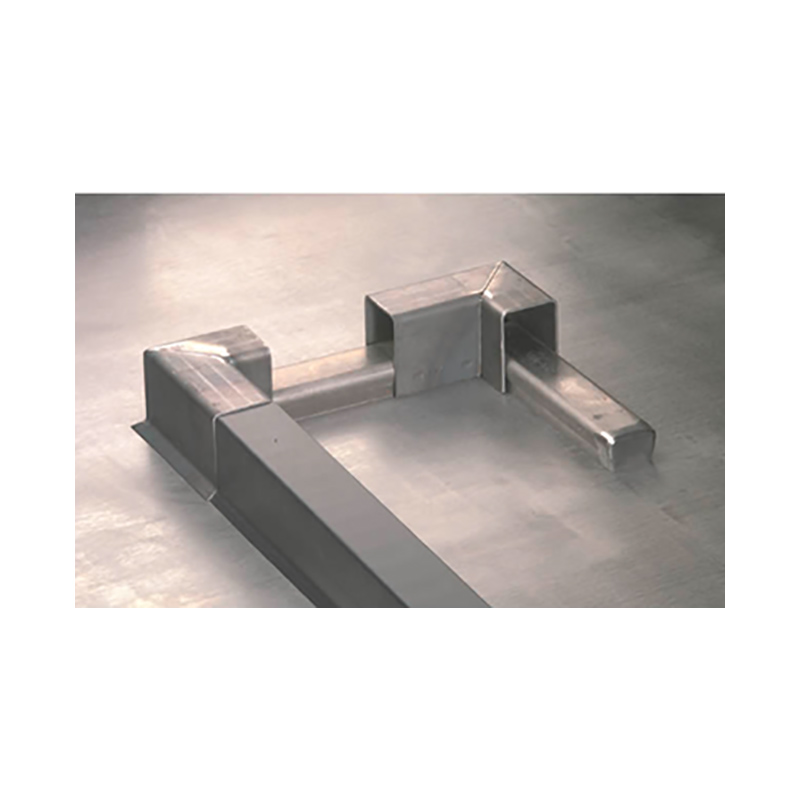

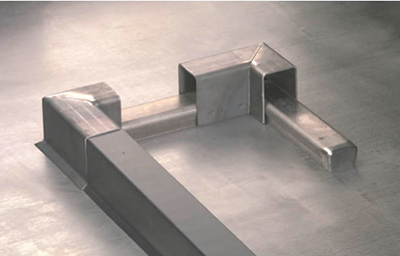

What is the Corner Slip-on U-shaped magnetic formwork?
This is a high-strength magnetic tool specifically designed for reinforcing the corners of concrete formwork. It's a magnetic formwork system designed for the corners of precast concrete components, employing an integrated U-shaped steel structure combined with high-performance neodymium iron boron magnetic boxes. No bolts, drilling, or adhesive are required; simply place it on the formwork, and it's positioned in 3 seconds and demolded in 10 seconds, achieving "zero loss, zero grout leakage, and zero adjustment."
| Material | stainless steel, iron, n50 n52 neodymium magnets |
| Surface Treatment | teel treatment, magnet nickel or zinc plating, black or white epoxy resin |
| Max operating temperature | 80°C or as required |
| Can it be customized | customizable |
| Height | 60-100 |
| Width | 60 |
| Length | customized on request |
The precast concrete corner slipform magnet is a bread-shaped template magnet specifically designed for rail molds or plywood formwork. With the addition of a multi-functional adapter, the bread magnet can be effectively secured, ensuring a tight fit with the side mold. Equipped with a special release tool, the magnet can be easily placed in the correct position. The U-shaped baffle features an innovative pressure point design; the internal pressure points tightly adhere to the tapered slope of the bread magnet. This design provides shock absorption and vibration damping for the U-shaped baffle and allows for customized chamfering to meet specific needs. The draft angle can also be adjusted for different application environments. Furthermore, corresponding tool magazine slots and sleeves are available for various common robotic systems on the market for better compatibility.
| Dimensions | traditional methods | U-shaped magnetic template |
| Installation efficiency | Drilling and screw fixing are required; single angle ≥ 15 minutes | Adsorbs in 3 seconds, no tools required |
| Molding accuracy | Wooden molds are prone to deformation, with an error of ≥±2mm. | The steel mold is integrally formed, with an error of ≤±0.5mm. |
| Demolding loss | Repeated tapping resulted in a breakage rate of ≥20% at the edges and corners. | Magnetic release, zero knocking, zero damage |
| Turnover life | Wooden molds are scrapped after 5-10 uses. | Steel mold + magnetic box ≥ 1000 cycles |
| Manual dependence | Requires 2 people to cooperate | One person operates independently |
Application of Corner Slip-on U Formwork Magnet
The Corner slip shuttering magnet is suitable for a variety of occasions and can be tightly combined with a multi-functional slide-in template or a universal adapter kit. It can also be easily installed into existing plywood templates. Compared with the common switchable push-pull button magnets on the market, this product adopts a simple button-free design. Its slim design greatly reduces the space occupied by the steel table, providing users with more operating space and convenience.
Why is it hailed as an "efficiency marvel"?
1. One-second installation, efficiency boosted by 80%
No tools or professional skills required. Workers simply align it with the corner of the steel formwork, slip it on, and with a "click," the magnetism is instantly triggered, securing it firmly. Disassembly is equally easy—just pull it out. Single-person operation reduces the previously tedious corner reinforcement work from minutes to one second, significantly shortening the construction period.
2. Perfect right angles, guaranteed quality
The powerful and evenly distributed magnetism effectively prevents bulging and grout leakage at corners. It ensures that every pour produces perfectly sharp, straight, and smooth concrete corners. Whether for demanding fair-faced concrete projects or standard commercial buildings, it easily achieves superior visual effects and structural precision.
3. Robust and durable, cost-saving expert
The main body is made of high-strength alloy steel, making it durable and reusable thousands of times. The cost per use is extremely low, completely eliminating the need for continuous investment in disposable consumables such as wire and screws. A one-time investment that significantly reduces your overall construction costs.
4. Safe and Reliable, Withstanding Immense Force: Through precise calculations and rigorous testing, its magnetic strength is sufficient to withstand the enormous lateral pressure during concrete pouring, with a safety factor far exceeding traditional methods. The built-in safety demagnetization system makes disassembly easy and safe, providing comprehensive protection for construction safety.
Customer Positive Feedback:
Why buy template magnets from us? Advantages of LSC template magnets:
1. High bonding strength, from 450 kg to 3100 kg. One-stop solution.
2. Over 15 years of experience in NdFeB magnet production. All NdFeB magnets used are manufactured in our own magnet factory. We can guarantee the quality of the magnets with a 3-year quality warranty.
3. 45 highly trained employees with 5 years of experience in magnetic assembly, minimizing losses and damage during magnet assembly and maximizing assembly speed.
4. Standardized production processes and strict quality inspection, testing materials, functions, and tensile strength.
5. Over 47 magnetic R&D experts with 10 years of experience provide you with the best magnet solutions, ensuring strong holding force of concrete magnets.
6. Competitive prices (50% cheaper than Ratec), stable quality (0.2‰ quality complaints in 2019), and timely response within 12 hours.
7. Fastest delivery time: One shipment (2 months of safety stock for standard items).
