A comprehensive analysis of Concrete Spacer

In our daily lives, we see skyscrapers, bridges, tunnels, and other architectural structures everywhere. Their towering presence is the product of countless precise calculations and rigorous construction. Among these components, there's a seemingly small yet crucial component: the concrete spacer. Today, let's discuss this unassuming yet indispensable "invisible guardian" of architecture.

First, what are concrete pads?

Concrete pads, also known as rebar pads or cover pads, are small prefabricated components used to secure rebar during concrete pouring. Their primary function is to maintain a certain distance between the rebar and the formwork, thereby forming a concrete cover. This cover protects the rebar from exposure to air, preventing oxidation and rust that could compromise the safety of the structure.

Secondly, why are concrete pads necessary?

Ensuring cover thickness: Concrete cover thickness is a key parameter in design specifications, directly impacting the durability and load-bearing capacity of the structure. Pads ensure that the rebar does not shift during the pouring process, allowing for precise control of cover thickness.

Improving structural durability: A sufficient cover effectively prevents corrosion from corrosive substances such as moisture and chloride ions, extending the lifespan of the building.

Enhancing fire resistance: The concrete cover provides thermal insulation for the rebar during a fire, preventing rapid softening and potentially leading to structural collapse.

Concrete pads can be categorized into various types based on their material and shape:

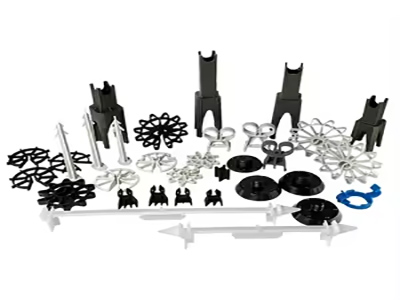

Plastic pads: Lightweight and economical, suitable for general residential construction. Common shapes include plum blossom, round, and gear-shaped.

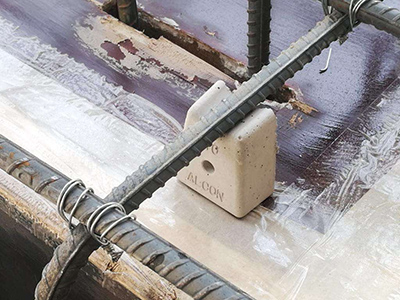

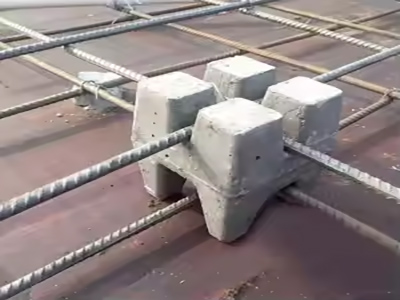

Concrete pads: Made of the same material as the main structure, they avoid thermal expansion and contraction or chemical compatibility issues caused by material differences and are often used in critical projects.

Metal pads: Typically made of galvanized steel, they offer high strength but require rust prevention.

Composite material pads: such as fiber-reinforced pads, which have the characteristics of lightness and high strength.

Finally, how should we select and use concrete pads?

1. How to Select Concrete Pads? (The Art of Selection)

Improperly selected pads will not only fail to provide protection but may even become the weakest link in the structure. Four key factors should be considered comprehensively when selecting:

A. Select based on the required cover thickness in the design

This is the most fundamental principle. The height (H) of the pad must exactly match the concrete cover thickness specified in the design drawings. For example, if the design requires a 25mm cover thickness for a beam, a 25mm pad must be selected; 20mm or 30mm pads cannot be substituted. Pads are typically clearly marked with their specifications.

B. Select based on structural location and component type

Different components are subject to different forces, so different pad shapes should be selected to ensure stability:

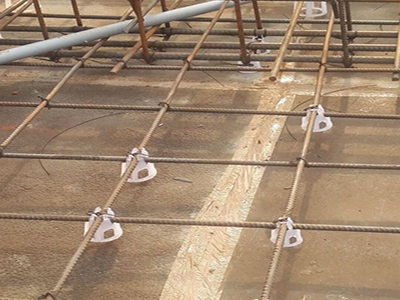

* For flat components such as slabs and walls: Use plum blossom-shaped, round, or figure-eight-shaped pads. These pads provide a large contact area with the formwork, provide excellent stability, and are less likely to leave noticeable marks on the component surface.

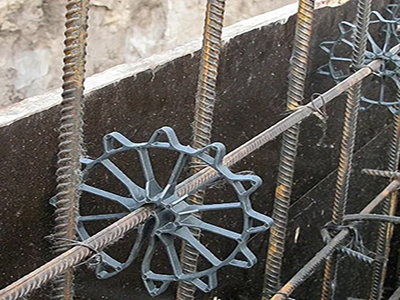

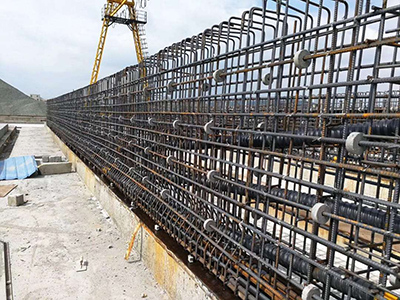

* For vertical components such as beams and columns: Gear-shaped spacers or high-strength plastic washers are recommended. These spacers securely attach to the rebar and resist dislodging during concrete pouring.

* Special areas: For areas with extremely dense rebar, such as joints and prestressed tendon anchorages, point-contact high-strength composite spacers or custom-made spacers can be used to ensure smooth concrete filling and compaction.

C. Selection Based on Spacer Material Properties

* Strength: The compressive strength of the spacer must exceed the design strength of the bulk concrete. Otherwise, the spacer will crush during pouring and vibration, causing the rebar to shift and the protective layer to lose its thickness.

* Durability and Compatibility:

* Concrete spacers: These are made from the same material as the bulk concrete, have the same thermal expansion coefficient, and offer the best durability. They are often used in critical projects.

* Plastic spacers: They are economical and lightweight, but their UV and aging resistance should be considered to ensure stable performance during construction.

* Composite spacers (such as fiber-reinforced): They offer high strength and corrosion resistance, making them the ideal choice for high-performance projects.

* Metal spacers: They must undergo rust-proofing treatments such as galvanizing or epoxy coating. Untreated ordinary steel must not be used to prevent rust expansion and concrete cracking.

D. Selection Based on Environmental Conditions

For environments subject to humidity, exposure to chloride ions (such as at the seaside), or other corrosive media, choose spacers with excellent corrosion resistance, such as high-performance concrete spacers or composite spacers, to prevent the spacers themselves from becoming a source of corrosion.

2.How to Use Concrete Spacers? (The Art of "Use")

Choosing the right spacer is only the first step; proper installation and use are crucial.

A. Placement Principles and Spacing

* Placement: Spacers should be placed between the rebar and the formwork, and ensure they are securely tied to the rebar.

* Spacing: There is no absolute standard, but a general rule of thumb is "no fewer than four per square meter." The specific spacing should be determined based on the rebar diameter and weight, typically ranging from 0.8 to 1.5 meters.

* Closer spacing at key locations: Spacers must be placed closer together at rebar intersections, load-bearing areas (such as the bottom of beams), and edges to prevent rebar from sinking or shifting due to the impact and vibration of the concrete.

B. Correct Installation Methods

* Secure Ties: Use dedicated tie wire or plastic clips to securely fasten spacers to the rebar. Simply placing them without securing them is strictly prohibited. On vertical members, the spacer's clips must securely engage the rebar.

* Avoiding Through-holes: Spacers should be staggered to avoid creating weak points in the concrete.

* Contact Surface Selection: For slab-type components, ensure that the spacers have a large contact area with the formwork to reduce pressure on the formwork and prevent marking or damage.

C. Inspection and Maintenance During Construction

* Pre-Pouring Inspection: Before pouring concrete, the specifications, strength, spacing, and firmness of the spacers must be thoroughly inspected and accepted. This is a crucial step in quality inspection.

* Monitoring During Pouring: During the pouring and vibration process, dedicated personnel should monitor the rebar and spacers. If a spacer is found to be falling off or the rebar is shifting, operations should be stopped immediately and adjustments and reinforcements should be made before continuing.

In short, the selection and use of concrete spacers is a technical task that combines scientific standards with construction experience. It tests the engineers' attention to detail and commitment to quality. Just as a thousand-mile dam can be breached by a single ant hole, every tiny spacer carries the weight of protecting the overall structural safety. Strictly scrutinizing every step of "selection" and "use" is the solid foundation for enduring the longevity of our buildings.
