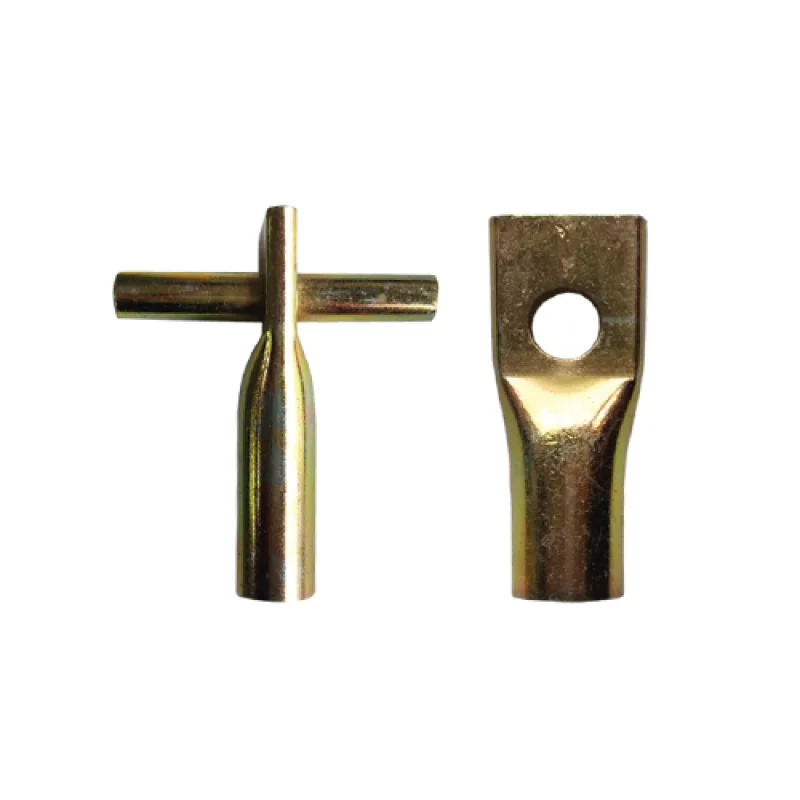

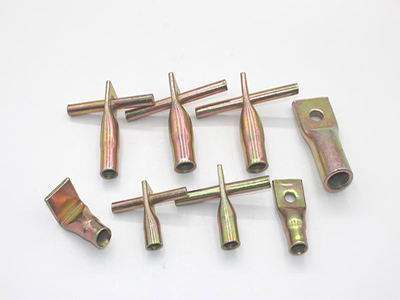

Fixing Socket With Cross Pin is a connection device used for the installation of precast concrete components. It fixes the precast components in the concrete structure through cross pins, without the need for additional reinforcement, and can quickly and reliably connect the precast components.

  • Item No :

    Fixing Socket With Cross Pin
  • Order(MOQ) :

    500
  • Product Origin :

    china
  • Lead Time :

    7-10days

Fixing Socket With Cross Pin

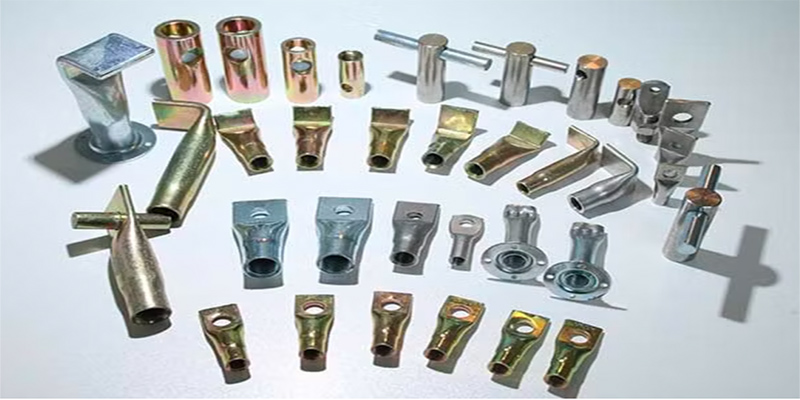

Fixing Socket With Cross Pin is a mechanical connection component, usually used to fix or lock two parts to prevent relative movement (such as rotation or axial movement). Its core design is to form a reliable mechanical connection by inserting a cross pin into a socket. The socket is a hollow cylindrical component, usually designed with a transverse hole. The cross pin is a metal pin that is inserted into the hole of the socket in a vertical or cross direction to lock the internal components (such as shafts, bolts, etc.).



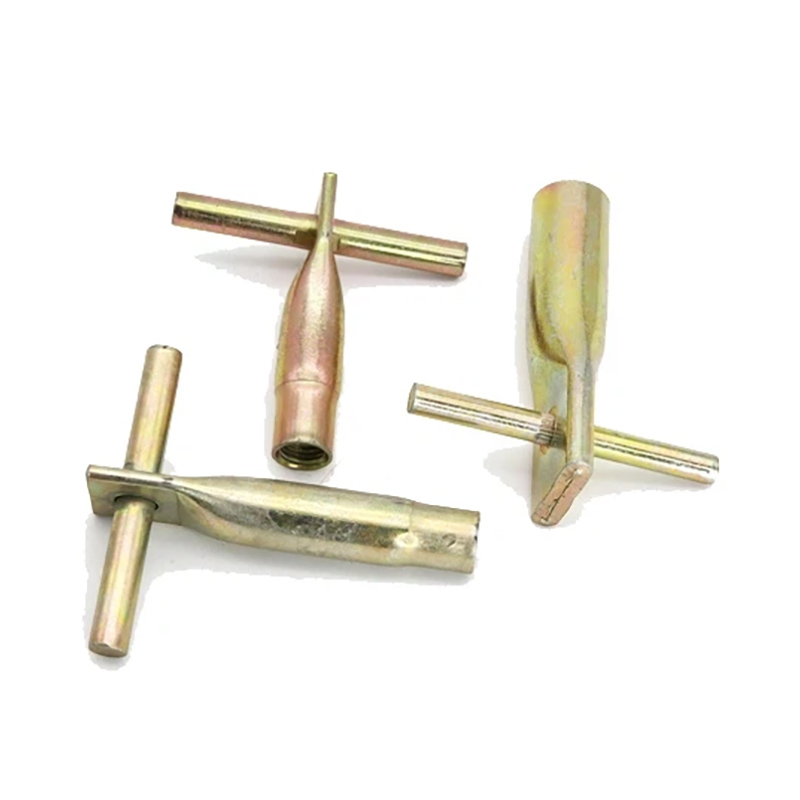

Fixing Socket With Cross Pin



Technical Principle

The cross pin fixing socket connects the precast component to the concrete structure through a cross pin. The cross pin is inserted into the reserved hole of the precast component and transmits the force directly into the concrete through the socket, thus achieving a stable connection. This design not only simplifies the construction process, but also improves the reliability and safety of the connection.



Specification

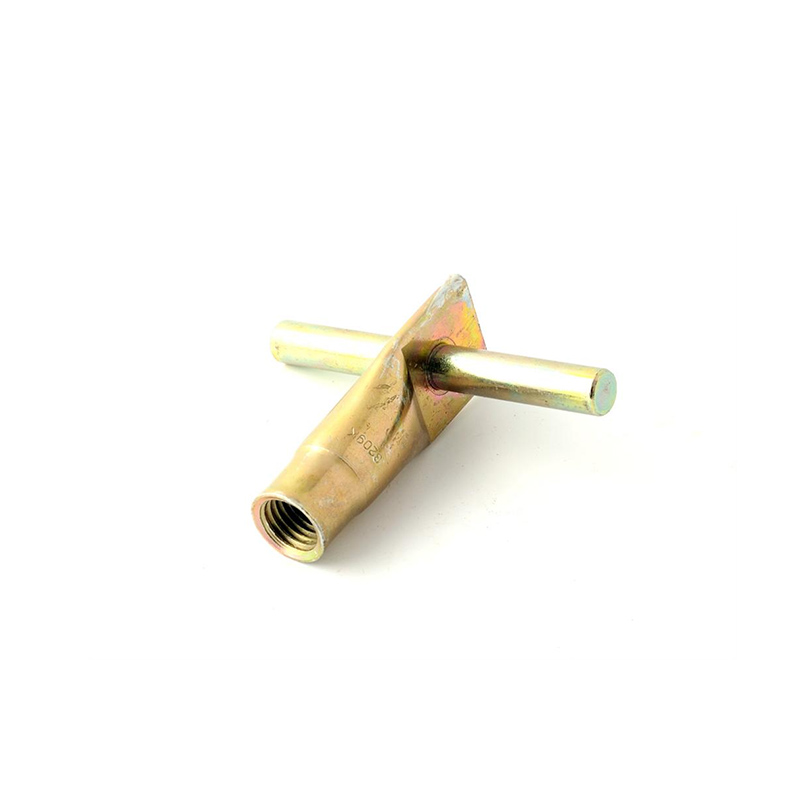

Fixing Socket With Cross Pin

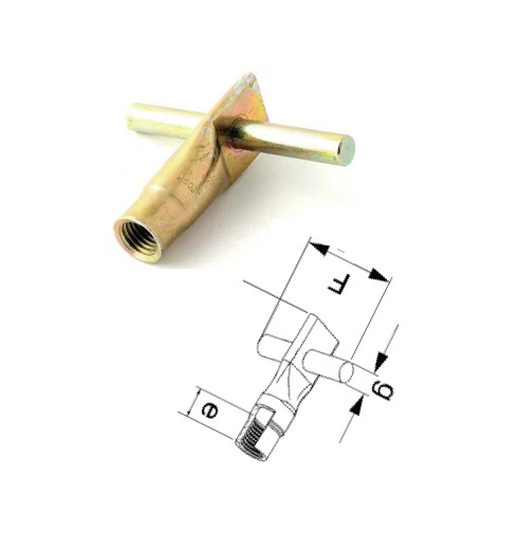

Code Size S.W.L Dimensions(mm)
KGS L D g e
LSC310108040 M8 200 40 11 8.5 8
LSC310108050 250 50
LSC310110050 M10 350 50 13 9..5 10
LSC310110060 450 60
LSC3101120060 M12 500 60 16 10.5 12
LSC3101120070 600 70
LSC310116070 M16 700 70 22 12.5 16
LSC310116080 800 80
LSC310120100 M20 1250 100 27 14.5 20
LSC310120120 120
LSC310124120 M24 1700 120 32 24
LSC310124150 M30 2600 150 42 17.5 30
Stainless steel 304(A2)/316(A4) are available upon request
Safety factor is 3:1



Main features

Quick installation: The cross pin fixing socket is designed for quick connection of precast components, with a large installation tolerance range, which can adapt to the errors of on-site construction, and the installation process is simple and fast.

No need for additional reinforcement: This socket can directly transmit force into the concrete without additional reinforcement, saving material costs and construction time.

High load-bearing capacity: The cross pin design can effectively transmit axial and shear forces, and is suitable for occasions with high tensile and shear forces.

Strong durability: It is usually made of high-strength steel or stainless steel, with good corrosion resistance and durability, suitable for use in humid or corrosive environments.

Wide range of application: It is suitable for a variety of precast concrete components, such as precast walls, beams, columns and slabs, especially for large projects such as high-rise buildings, bridges, tunnels, etc.



During the installation of prefabricated components, the cross pin fixing socket has significant advantages, mainly manifested as follows:

Quick installation: The installation process of the cross pin fixing socket is very simple. You only need to align the reserved hole on the prefabricated component with the socket, insert the cross pin and fix it. This quick connection method greatly shortens the installation time and improves construction efficiency.

Reduced on-site work: Compared with traditional steel reinforcement, the cross pin fixing socket does not require complicated steel bar binding and concrete pouring, which reduces on-site wet work and reduces the difficulty of construction.

Strong adaptability: The cross pin fixing socket has a large installation tolerance range, which can adapt to the errors of on-site construction and reduce rework caused by size mismatch.

High load-bearing capacity: The cross pin design can effectively transmit axial and shear forces, ensure that the connection between prefabricated components is stable and reliable, and can withstand high tension and shear forces.

Strong durability: The cross pin fixing socket is usually made of high-strength steel or stainless steel, has good corrosion resistance and durability, and is suitable for use in humid or corrosive environments.

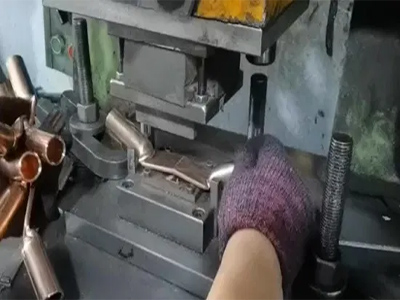

Fixing Socket With Cross PinFixing Socket With Cross Pin



Notes

Installation requirements: Ensure that the concrete strength is ≥25 N/mm², and the hole diameter and pin are precisely matched to avoid loosening.

Applicable restrictions: Not suitable for scenes that require high-precision alignment, such as floors, and should not be used alone in key load-bearing parts without technical approval.
