A comprehensive analysis of neodymium magnets

As the most powerful permanent magnetic material in the contemporary world, neodymium magnets (NdFeB) have been deeply integrated into the context of the technology industry. From the vibration motor of smartphones to the core components of wind turbines, from medical imaging equipment to the drive system of electric vehicles, this "king of magnets" material is quietly reshaping the boundaries of modern industry. However, in the face of a complex grade system and harsh use environment, how to scientifically select and maintain has become a subject that engineers and users must master.

 Analysis of the neodymium magnet grade system: the science behind numbers and letters

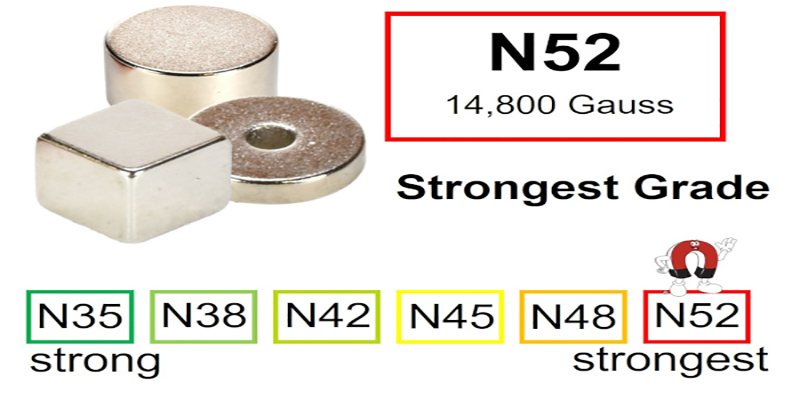

The grade naming of neodymium magnets adopts the structure of "N+number+letter" (such as N42SH), and each part corresponds precisely to its physical properties:

- Numbers (such as 35, 42, 52): represent the maximum magnetic energy product (MGOe). The larger the number, the stronger the magnetic force. For example, the magnetic energy product of N52 can reach 52 MGOe, which is about 35% higher than N35.

- Suffix letters: indicate the temperature resistance level, which determines the stability and demagnetization risk of the magnet at high temperatures.

 Industry application distribution: "Invisible promoter" from consumer electronics to energy revolution

1. Consumer electronics and home appliances

- General grade (N35-N42):

- Mobile phone linear motor, TWS headset magnetic suction unit (miniaturization and high magnetic requirements);

- Speakers, hard disk drives (using strong magnetic fields to drive sound membranes or read/write heads);

- Air conditioning compressor motors (N40H grade takes into account both cost and temperature resistance).

2. New energy vehicles and transportation

- High performance grade (N48-N52SH/UH):

- Permanent magnet synchronous motor (single drive motor consumes 5-10kg of NdFeB);

- Regenerative braking system, steering assist sensor (resistant to high temperature vibration).

- Maglev train propulsion motor: using UH/EH grade magnets to withstand high-speed operation heat.

3. Industrial Automation and Energy

- High Temperature Stability (N45SH-UH):

- Industrial Robot Joints (a single welding robot consumes about 25kg of magnetism);

- Wind Turbine Pitch System (exposed to outdoor temperature differences and vibration environments).

4. Medical and High-end Technology

- Ultra-stable High Magnetic Grade (N50EH):

- MRI equipment auxiliary magnets, particle accelerator components (need to resist radiation + high temperature);

- Micro-encapsulation (N38M): insulin pump valves and other implantable devices (biocompatible coating is key).

> ⚙️ Industry Trends: New energy vehicles and robotics industries are driving the demand for high temperature grade (SH/UH) magnets to increase by more than 15% annually.

Maintenance Guide for Neodymium Magnets: Anti-demagnetization, Anti-rust, Anti-failure

Although neodymium magnets are strong, they have three weaknesses: brittleness, fear of high temperature, and easy oxidation. Scientific maintenance can extend the life of more than 30%:

1. Prevent mechanical damage

- Avoid impact or falling: Neodymium magnets are hard but brittle, and are easy to break under force;

- Use non-magnetic tools (such as plastic/wooden tweezers) to pick and place to prevent damage to the magnetic domain structure.

2. Temperature management and anti-demagnetization

- It is strictly forbidden to exceed the nominal temperature: N level should not exceed 80℃, SH level should not exceed 150℃;

- Stay away from heat sources (such as engine block, PCB heating elements), and install heat sinks if necessary.

3. Key measures for corrosion prevention

- Surface coating protection: Nickel-copper-nickel (Ni-Cu-Ni) three-layer plating is the anti-rust benchmark, and epoxy resin coating is suitable for chemical environments;

- Environmental control: - Relative humidity ≤ 60%, avoid contact with acid, alkali, and salt water (salt water increases the rust rate by 5 times);

- For outdoor use, fully sealed epoxy-coated magnets must be selected.

4. Cleaning and storage specifications

- Cleaning method:

Gently wipe the surface with a soft cloth dipped in anhydrous alcohol. Do not use water or chemical solvents;

- Storage requirements:

- Store in a drying oven at a temperature of 10-30℃;

- Place spacers between magnets to prevent adsorption and collision, and keep away from sensitive devices such as credit cards and pacemakers.

> ⚠️ Emergency treatment: If the coating is damaged and rusted, immediately use sandpaper to lightly grind the rust spots and apply anti-rust wax.
